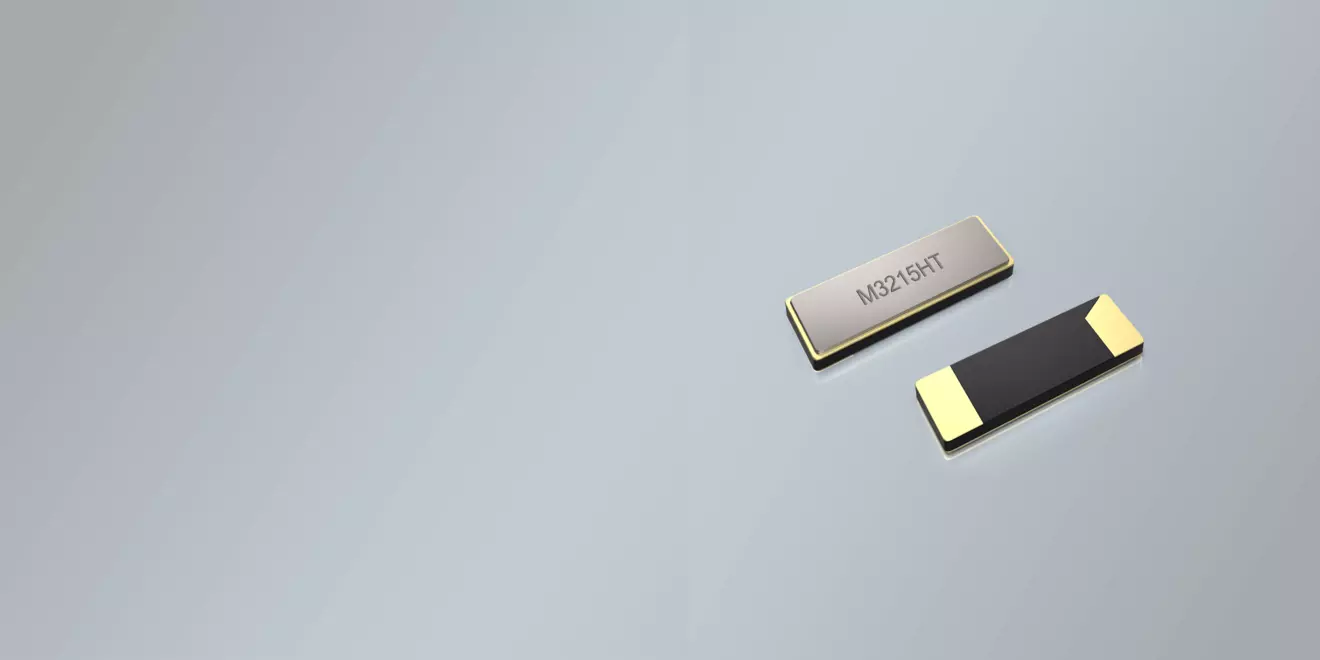

SMD WATCH CRYSTAL 3.2 x 1.5 mm 32.768 kHz (-40/+125°C)
- Cheapest available MINI-Watch-Crystal in ceramic package
- Ultra low profile
- Extended operating temperature range of -40/+125°C
- Excellent clock generator for CPU's, Wireless, Mobile Comm., etc.
- Typical applications: IoT, Metering, Industrial, Health Care, Wearables, Portables, Wireless
Nome del prodotto
32.768 kHz Quartz Crystal
Package
SMD Ceramic/2pad
Dimensioni (mm) L x D x H:
3.2 x 1.5 x 0.75 mm
Range della frequenza
32.768 kHz
NUMBER OF SOLDER PADS
2
FREQUENCY TOLERANCES AT 25°C
±20 ppm (standard)
±10 ~ ±100 ppm (option)LOAD CAPACITANCE (CL)
12.5 pF (standard)
6,7 and 9pF available on requestWORKING TEMPERATURE RANGE
-40/+125°C
RESONANCE RESISTANCE
70 kΩ max.
SHUNT CAPACITANCE C0
1.3 pF typ.
TURNOVER TEMPERATURE
+25°C ±5°C
PARABOLIC COEFFICIENT
-0.04 ppm/°C²
DRIVE LEVEL
0.2 µW typical (0.5 µW max.)
AGING
±3 ppm max. per year
INSULATION RESISTANCE
>500 MΩ DC/100V ±10%
STORAGE TEMPERATURE
-55°/+125°C
DELIVERY FORM
Reel (1.000 ~ 3.000 pcs per reel)
Other quantities: in bulks or cut tape
DATASHEET: SMD 32.768 kHZ QUARTZ CRYSTAL M3215 (-40/+125°C)
