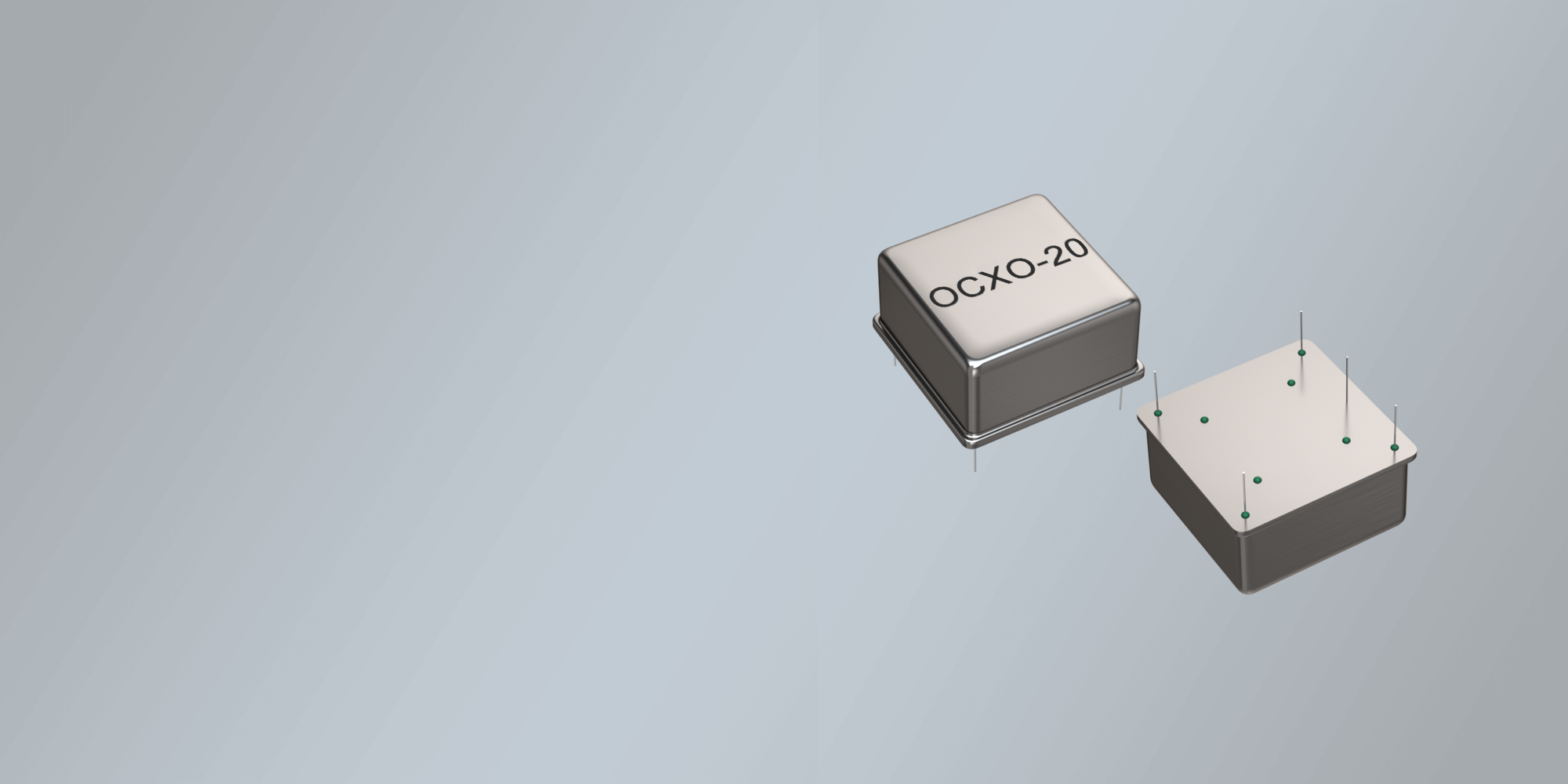

THT OCXO OSCILLATOR 20.5 x 20.5 mm 2.0-100.0 MHz
- Alta affidabilità per un costo contenuto
- Progetti OCXO basati su SC-Cut e AT-Cut
- Ampio intervallo di tensione di alimentazione da 3,3 a 12 VDC
- Breve tempo di riscaldamento ed eccellente comportamento di retrace
- Alta stabilità, eccellente rumore di fase, basso consumo energetico
- Esteso intervallo di temperatura operativa da -40°C a +75°C
Nome del prodotto
OCXO
Package
THT Metal
Dimensioni (mm) L x D x H:
20.5 x 20.5 x 10.5 mm
Range della frequenza
2.00 - 100.00 MHz
OUTPUT SIGNAL AND LOAD CHARACTERISTICS
Click Tab Output Waveform
PHASE NOISE (10MHz) 10 kHz
-150 dBc/Hz
PHASE NOISE (10MHz) 1 kHz
-145 dBc/Hz
PHASE NOISE (10MHz) 100 Hz
-140 dBc/Hz
PHASE NOISE (10MHz) 10 Hz
-120 dBc/Hz
LINEARITY
±10%
SLOPE
POSITIVE
CONTROL VOLTAGE
0 ~ 3.3 VDC, 0 ~ 5 VDC
FREQUENCY CONTROL RANGE SC-CUT
±0.7 ppm
FREQUENCY CONTROL RANGE AT-CUT
±3.0 ppm
WARM-UP TIME SC-CUT
±0.1 ppm <3 minutes
WARM-UP TIME AT-CUT
±0.2 ppm <3 minutes
CURRENT CONSUMPTION
3.6 W max. during warm-up / 1.2 W max. when static
SUPPLY VOLTAGE
+3.3VDC / +5.0VDC / +12VDC
STORAGE TEMPERATURE RANGE
-40/+100°C
OPERATING TEMPERATURE RANGE
0/+50°C ~ -40/+75°C
SHORT TERM STABILITY
1x10E-11/s (10 MHz SC)
FREQUENCY STABILITY VS. TEMPERATURE
Click Tab Frequency Stability
FREQUENCY STABILITY VS. SUPPLY VOLTAGE
±0.01 ppm / supply voltage changement of ±5%
FREQUENCY STABILITY VS. LOAD
±0.01 ppm / load changement of ±10 %
FREQUENCY STABILITY VS. AGING SC-CUT
±0.001 ppm/day / ±0.1 ppm/first year / ±0.5 ppm/10 years
FREQUENCY STABILITY VS. AGING AT-CUT
±0.002 ppm/day / ±0.3 ppm/first year / ±2 ppm/10 years
FREQUENCY ACCURACY
±0.2 ppm (control voltage centered)
