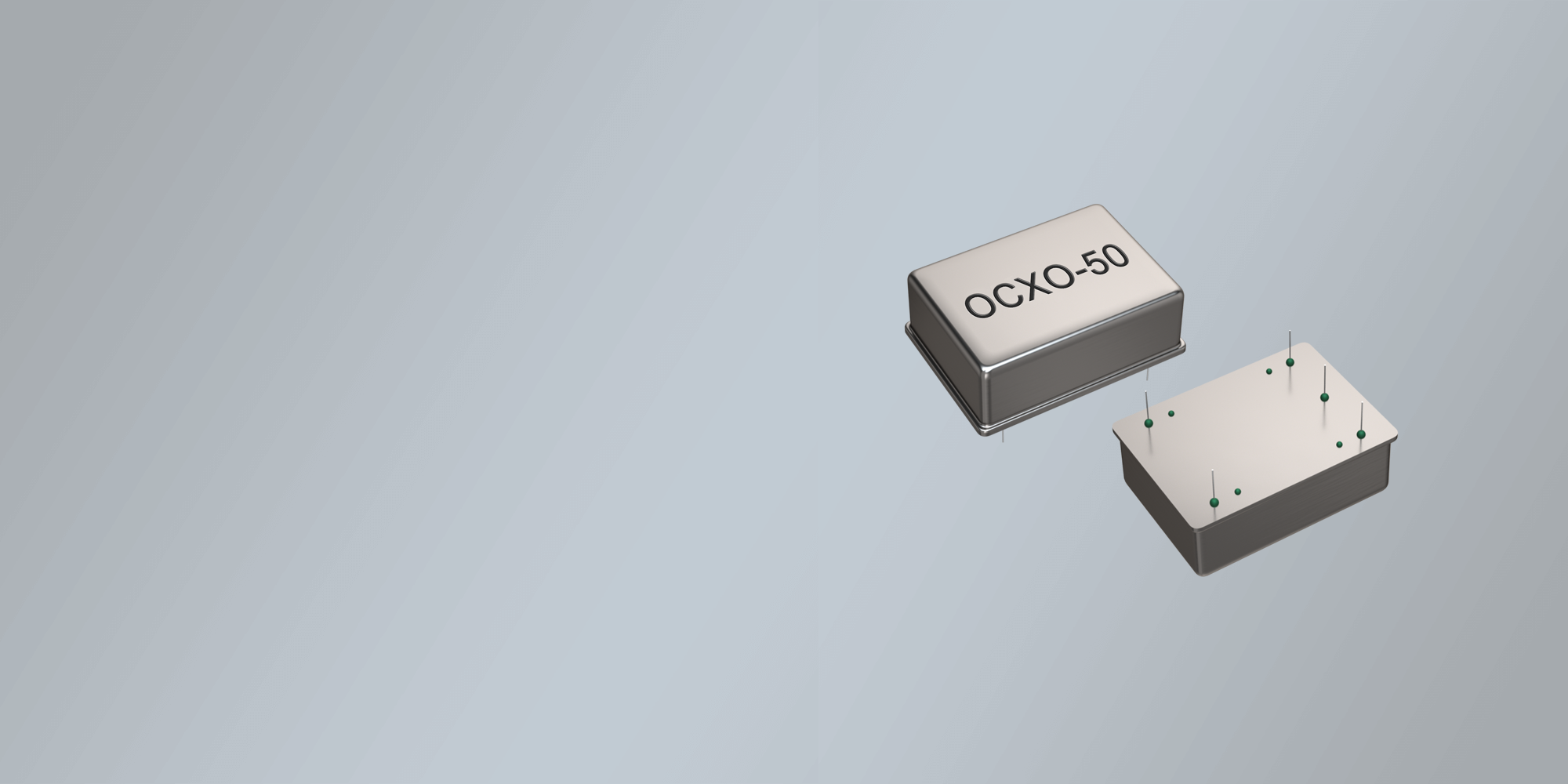

THT OCXO OSCILLATOR 50.8 x 50.8 mm 10.0-50.0 MHz
- Alta affidabilità a basso costo
- Progetti OCXO basati su SC-Cut e AT-Cut
- Ampio intervallo di tensione di alimentazione da 3,3 a 12 VDC
- Breve tempo di riscaldamento ed eccellente comportamento di retrace
- Alta stabilità, eccellente rumore di fase, basso consumo energetico
- Esteso intervallo di temperatura di funzionamento da -40°C a +75°C
- Senza piombo e conforme a RoHS
-
Nome del prodotto
OCXO
-
Package
THT Metal
-

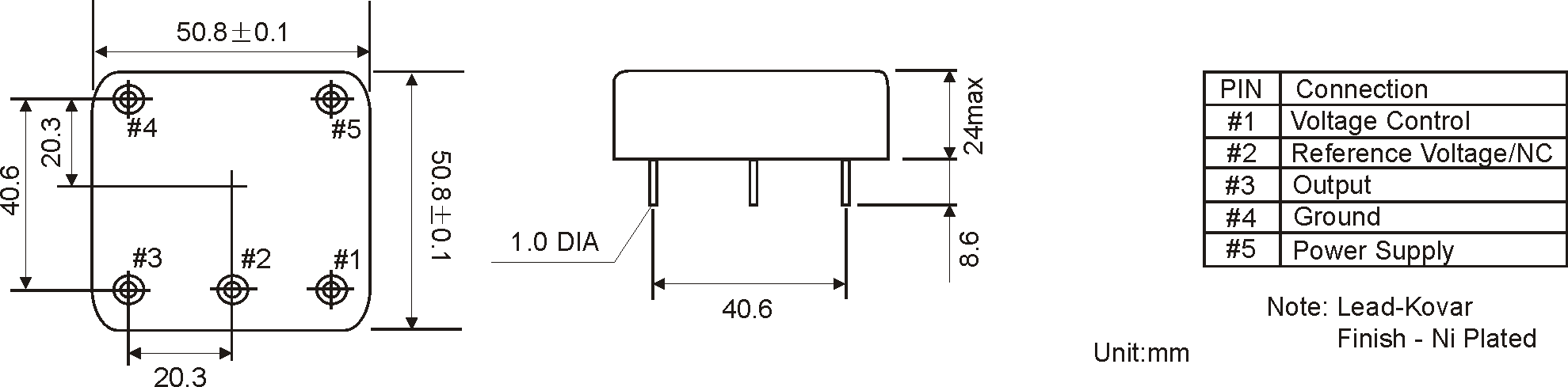

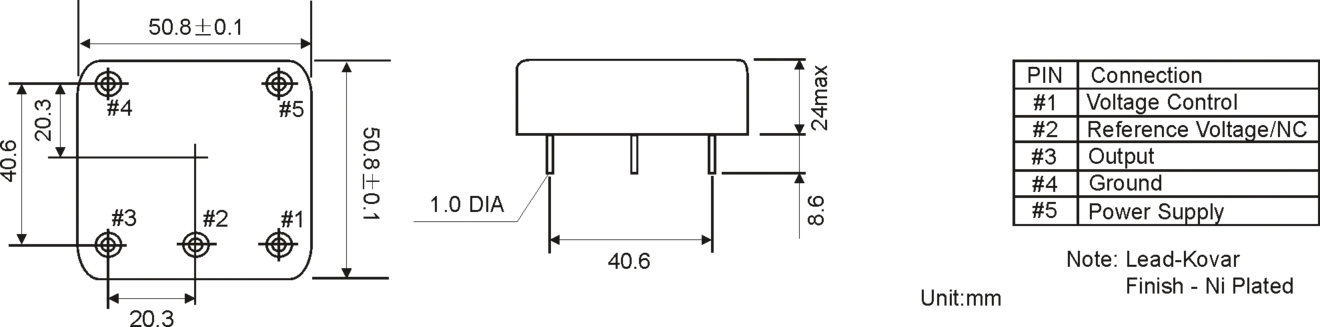

Dimensioni (mm) L x D x H:
50.8 x 50.8 x 24.0 mm
-
Range della frequenza
10.00 - 50.00 MHz
-
OUTPUT SIGNAL AND LOAD CHARACTERISTICS
Click Tab Output Waveform
-
PHASE NOISE 10 kHz
-150 dBc/Hz
-
PHASE NOISE 1 kHz
-145 dBc/Hz
-
PHASE NOISE 100 Hz
-140 dBc/Hz
-
PHASE NOISE 10 Hz
-120 dBc/Hz
-
LINEARITY
±10%
-
SLOPE
POSITIVE
-
CONTROL VOLTAGE
0 ~ 5 VDC
-
FREQUENCY CONTROL RANGE SC-CUT
±0.7 ppm
-
FREQUENCY CONTROL RANGE AT-CUT
±3.0 ppm
-
WARM-UP TIME SC-CUT
±0.1 ppm <5 minutes
-
WARM-UP TIME AT-CUT
±0.2 ppm <5 minutes
-
CURRENT CONSUMPTION
5.0W max. during warm-up / 2.0W max. when static
-
SUPPLY VOLTAGE
+5.0VDC ±5% / +12VDC ±5%
-
STORAGE TEMPERATURE RANGE
-40/+100°C
-
OPERATING TEMPERATURE RANGE
0/+50°C ~ -40/+75°C
-
SHORT TERM STABILITY
1x10E-11/s (10 MHz SC)
-
FREQUENCY STABILITY VS. TEMPERATURE
Click Tab Frequency Stability
-
FREQUENCY STABILITY VS. SUPPLY VOLTAGE
±0.002 ppm / supply voltage changement of ±5 %
-
FREQUENCY STABILITY VS. LOAD
±0.002 ppm / load change of ±10 %
-
FREQUENCY STABILITY VS. AGING SC-CUT
±0.001 ppm/day / ±0.1 ppm/first year / ±0.35 ppm/10 years
-
FREQUENCY STABILITY VS. AGING AT-CUT
±0.002 ppm/day / ±0.2 ppm/first year / ±2 ppm/10 years
-
FREQUENCY ACCURACY
±0.2 ppm (control voltage centered)
